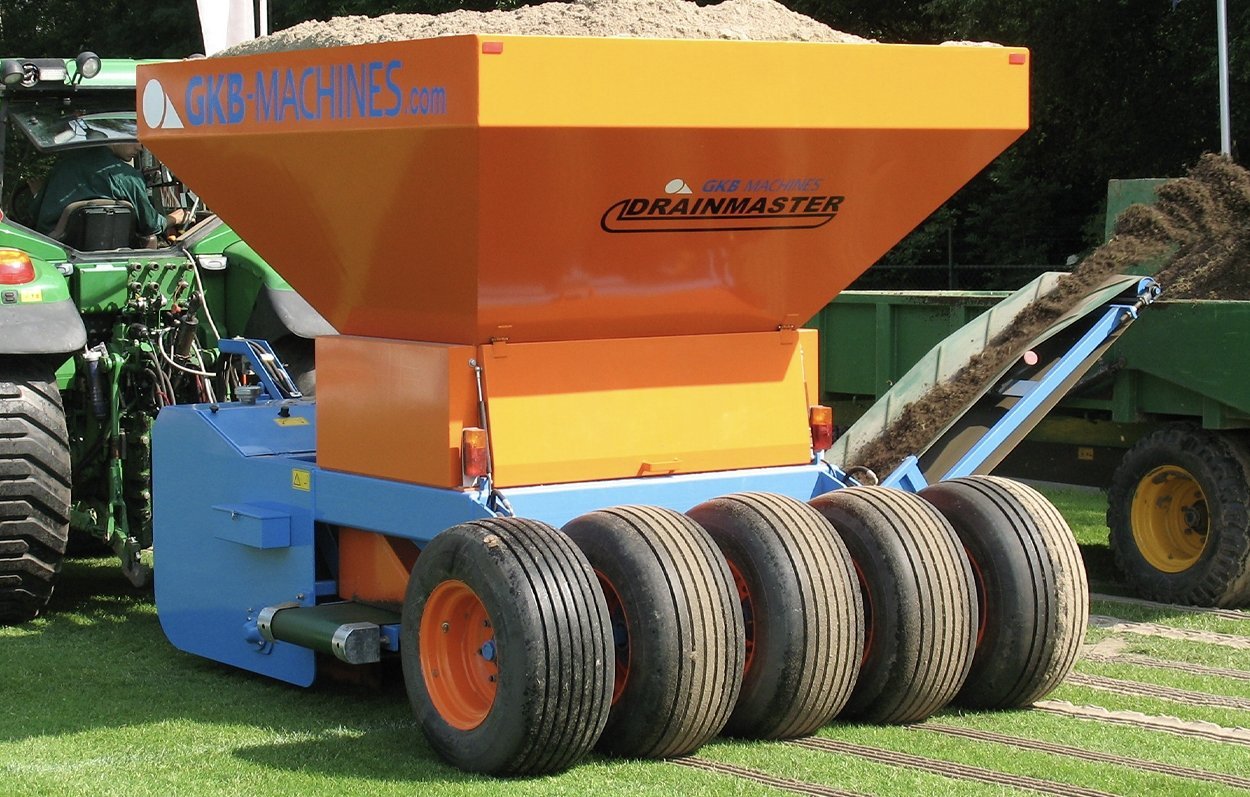

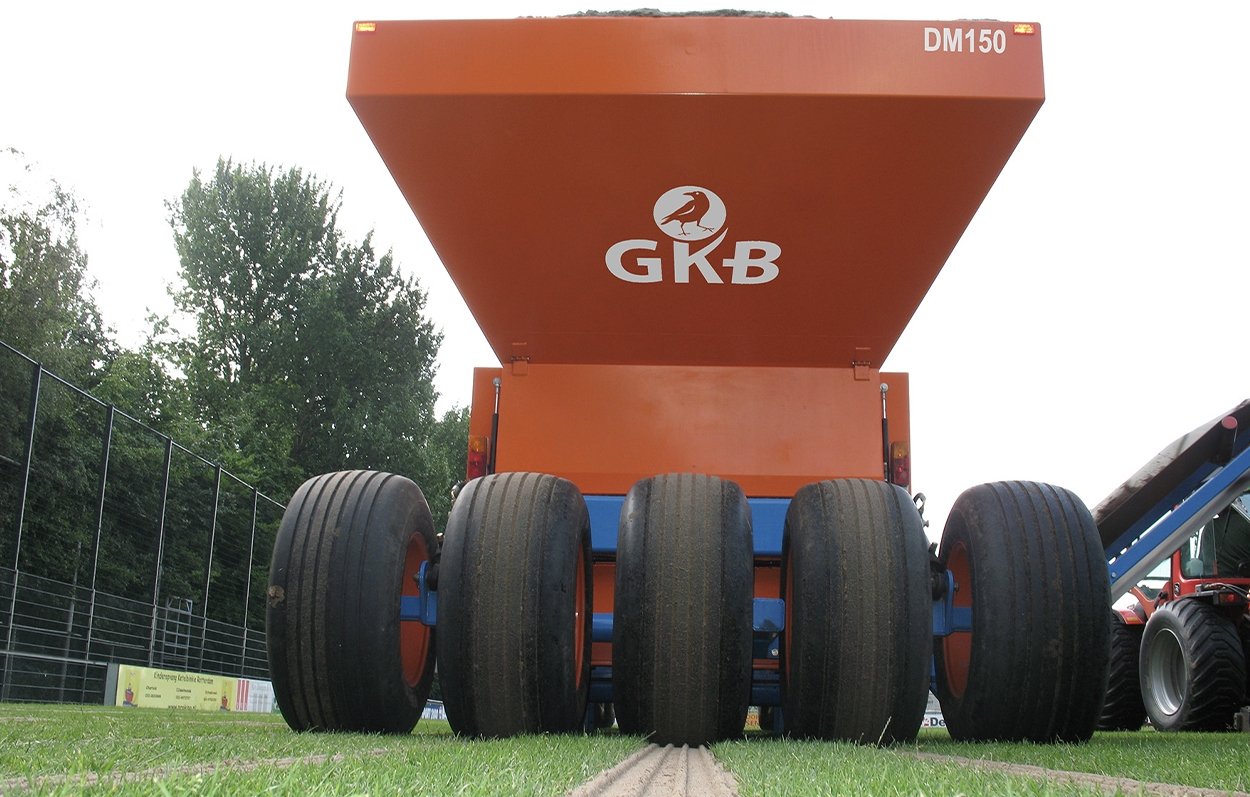

GKB - Drainmaster 150

The Drainmaster 150 digs 2 or 3 trenches of 1.6" wide and fills those directly with sand, so that the drainage of the turf improves

- It is ideal to make it on a right angle based on the underlying existing drainage.

 - Working width: 59"

- Working depth: Max. 9"

- 24 fraising chisels 1.5" divided over 3 trenches

- 6 sand drives 1.5" divided over 3 trenched

 - Operation dimensions: 117.25x153.5x102.5" (lxwxh)

- Transport dimensions: 117.25x153.5x152.5" 9lxwxh)

- Weight: 7275 lbs (empty weight)

- Capacity sand bunker: 5.25 y3- Power requirement: >120 pk (+ creep gearbox)

- Linkage: drawbar eye

- Walterscheid PTO shaft W2500 with slipclutch

- 1x double acting hydraulic valve / depth adjustment buckling drawbar (5.25 gal/min)

- 2x double acting hydraulic valve / cylinder sidebelt and wheels (5.25 gal/ min)

 - IMPORTANT: not for use on public roads
